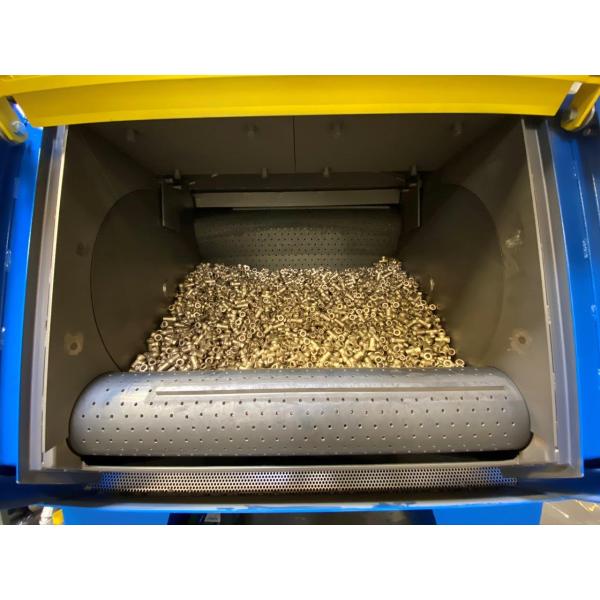

Rubber Tumble Belt Shot Blasting Machine for rust cleaning
Product description
Rubber track shot blasting machine with good cleaning quality, time
is short, compact, low noise, good sets of advantages. Mainly
applicable to all walks of life in the castings, forgings, aluminum
parts, stamping parts, gears and springs of sand, rust, descaling
and surface strengthening, but also applies to all kinds of
hardware tools. Especially for fear of touching the parts, cleaning
and strengthening is more applicable. Crawler-type shot blasting
machine for different production scale, both stand-alone use, can
also be multi-use. And continuous conveyor, such as supporting the
production of clean-up assembly line, is the ideal clean-up
equipment for large and medium-sized clean-up.
Advantage:
1 .Uses the motor straight pull high efficiency shot blasting
machine, with a high shot efficiency, long life, simple structure
and so on.
2. Using the bag filter, dust emission concentration lower than the
national standard, to improve the working environment of workers.
3.The use of dust collector, the use of air separation separator,
with good separation efficiency and high productivity, improved
blade life.
4. Wear-resistant rubber track, reducing the impact of the
workpiece, damage, reducing the noise of the machine.
5 .After the completion of cleaning the workpiece can be
automatically unloaded, reducing the labor intensity of the
workers.
Technical data
| Model | Effective volume (mm) | Feeding amount (kg) | Workpiece weight (kg) | Total power (kw) |
| 3GN | ∅705×800 | 220 | 12 | 13.1 |
| 6GN | ∅857×940 | 363 | 23 | 19.2 |
| 8GN | ∅1100×1050 | 650 | 32 | 23.7 |
| 8GN-5R(automatic feeding) | ∅1000×1050 | 650 | 32 | 27.4 |
| 10GN | ∅1150×1250 | 1000 | 55 | 39.4 |
Why choose a high-end shot blasting machine?
Our shot blasting machine technology is leading the world,
especially in Asia in the field of high-end shot blasting machines.
Process and technology are related to product life, use cost, work
efficiency, maintenance cost
◎ Application of European shot blasting machine technology,
independent research and development technology of 3 national
invention patents
◎15-75Kw high-end shot blasting machine successfully developed,
exported to Germany and the United States, won the national
invention patent
◎High-end shot blasting model saves power consumption, high
efficiency, low failure rate, and stability
◎ Strategic partners of China Construction Steel Corporation and
Hangzhou Xiao Steel Corporation
◎ Minimal downtime to increase your productivity and better shot
blasting modes
◎Bring a healthier working environment and adapt to a harsher
working environment
